Intelligent Thermostat , Furnace Brazing Furnace , Gas-Electric Hybrid Alumium Brazing

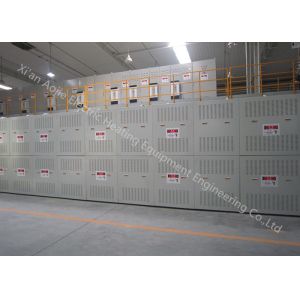

This mesh belt continuous electric gas aluminum brazing furnace is mainly used for the brazing aluminum stainless steel and aluminum plate , copper etc. The product surface can be bright without oxidation with the help of this equipment.
The furnace has modern and fine structure with little energy consumption, high heat efficiency, which ensure the stable production quality. It is easy to use and safe to operate and it will not generate the industrial pollution.
It is equiped with intelligent thermostat and silicon controlled rectifier to ensure temperature control precision of ±1℃. It’s advanced, reliable, practicable and cost effective as an industrial furnace.
The degreasing furnace is heated by natural gas or electricity. The oil on the core will be removed by stir fan through circulating hot air. During this process, the lubricating oil will be evaporated, and then burning in the incinerator. The temperature control of this furnace is adjusted by PID. Within the width of mesh-belt, the temperature uniformity will be within ±10
The inserted heating elements are located in the different zones to heat up workpieces to brazing temperature. The individual SCR is used to stabilize heating demand in each zone. Within the range of whole belt width, the furnace temperture uniformity will be fluctuate within ±3°C (Based on the measurement on the same section of moving workpiece)
